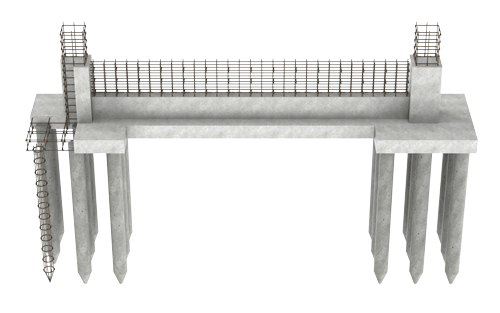

Analyze any pile arrangement and design the pile cap accordingly, including cap thickness, steel requirements, and rebar spacing. Any configuration of up to 200 piles may be analyzed for both axial and biaxial bending moments. The program then computes the centroid. Pile Cap Analysis & Design not only analyzes the pile group, but also designs the cap’s required thickness and reinforcement.
Digital Canal’s Pile Cap Analysis & Design software has been a trusted tool for engineers for nearly two decades. In that time, engineers worldwide have used it to design hundreds of pile caps with accuracy. The program is sophisticated enough for most real-world designs, yet it does not require an advanced degree to operate. Most users can learn the program in about 15 minutes.
