Shear Wall Analysis overview

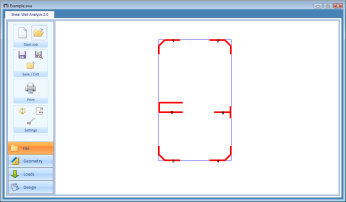

Structural Design SoftwareAnalyze a building which is laterally supported by shear walls for the shears and moments in each of the shear walls.  Loads due to wind and seismic conditions can be input in two perpendicular directions.  Lateral loads are distributed based on the combined flexural and shear stiffness of the individual wall elements. Displacements are outputted for the four comers of the building at each floor level.
